Key Features of Industrial PCD PCBN Vacuum Brazing Furnace
10-16-2026 Author: KJ technology
PCD PCBN vacuum brazing furnace is specialized industrial heat treatment equipment designed for brazing polycrystalline diamond (PCD) and polycrystalline cubic boron nitride (PCBN) superhard cutting tools onto cemented carbide substrates. It creates an oxygen-free high-vacuum environment to prevent diamond graphitization and workpiece oxidation, realizing high-strength, void-free bonding between superhard material tips and tool bases. Below are the core key features of industrial-grade PCD PCBN vacuum brazing furnaces.

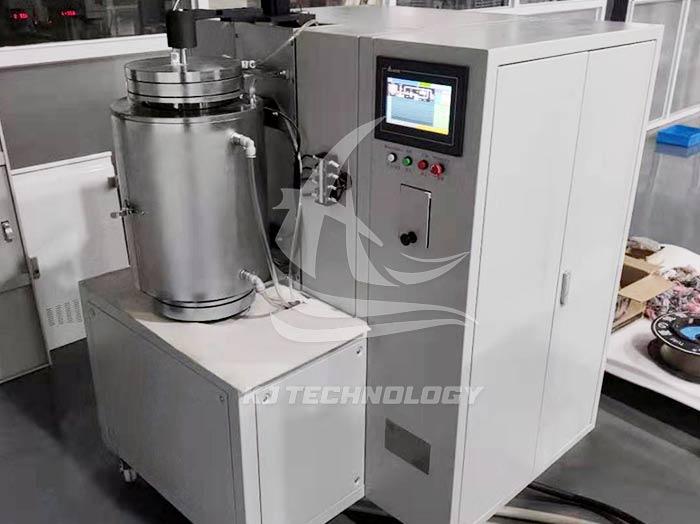

Commonly used PCD PCBN Vacuum Brazing Furnace (click on the image to view product details)
1. High-Stability Vacuum System
The vacuum system adopts a two-stage pumping combination of rotary vane pump and molecular pump, reaching an ultimate vacuum up to 10⁻³ Pa. It quickly removes air, moisture and residual gas inside the chamber, avoiding oxidation of the active brazing filler metal (Ag-Cu-Ti alloy) and preventing PCD diamond graphitization at high temperature.
Excellent chamber sealing design maintains stable vacuum throughout the whole heating and holding cycle. Oil-free pumping options are available to eliminate oil backflow contamination, ensuring ultra-clean working environment for precision tool brazing.
2. Multi-Zone Heating & Uniform Temperature Field
Industrial PCD PCBN vacuum brazing furnaces adopt ring and bottom combined heating structure. Multi-zone temperature control delivers outstanding temperature uniformity inside the hot zone, with temperature control accuracy up to ±1℃.
This feature guarantees consistent melting and wetting of brazing filler metal for all inserts in one batch. Uniform heating reduces thermal deformation of tiny tool blanks, which is critical for producing high-precision PCD and PCBN turning, milling and boring cutting inserts. The maximum working temperature can reach 950℃ to match the active brazing process parameters of superhard materials.
3. Intelligent PLC Programmable Control System
Equipped with 10-inch HMI touch screen and PLC automatic control system, the furnace supports multi-segment programmable heating curves. Users can set ramp rate, holding time and cooling segments freely, and store dozens of independent process recipes for different PCD/PCBN tool specifications.
Temperature curves and vacuum data can be recorded and exported for quality traceability and process analysis. The system has built-in over-temperature, low-vacuum and power failure protection functions. In case of sudden power cut, the valves close automatically to protect workpieces and furnace components.
4. High Brazing Quality & Production Consistency
Vacuum brazing produces clean, oxide-free tool surfaces. The brazed joint strength is 2~3 times higher than traditional high-frequency induction brazing, reducing tool tip peeling risk during cutting operations.
A single furnace batch can load hundreds of cutting inserts, suitable for both small-batch trial production and mass manufacturing. The full automatic working cycle runs around 70–120 minutes, greatly improving production efficiency for cutting tool factories. Optional axial pressure function can be added to further improve compactness of brazing seams.
5. Reliable Hot Zone & Chamber Structure
The hot zone uses high-temperature resistant insulation materials, with low heat loss and good thermal shock resistance. The furnace chamber is made of thick stainless steel, featuring anti-corrosion and easy cleaning performance.
Multi-layer work platforms are optional to place tool fixtures neatly and maximize the loading capacity. The whole furnace structure is optimized for long continuous running, reducing frequent maintenance downtime in industrial workshops.
6. Flexible Customization & Safety Design
Industrial PCD PCBN vacuum brazing furnaces support customized chamber sizes, hot zone dimensions and auxiliary configurations according to customers’ tool sizes and output requirements.
Complete safety interlock and alarm systems are standard. Optional inert gas backfilling cooling function can realize controllable furnace cooling to avoid rapid cooling damage to PCD and PCBN workpieces.

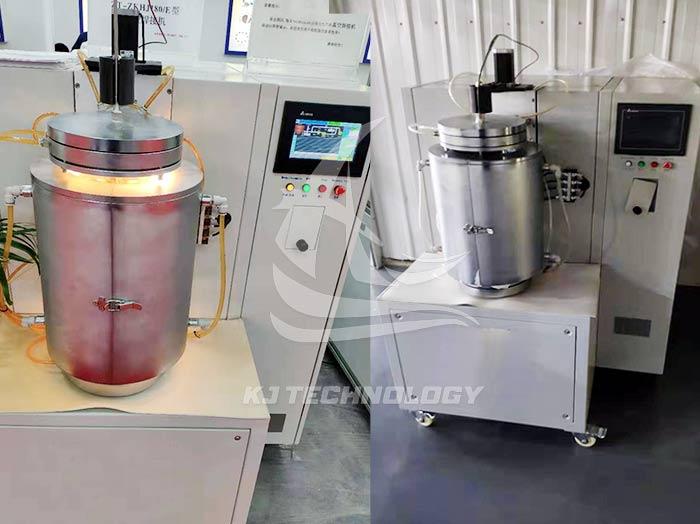

Commonly used PCD PCBN Vacuum Brazing Furnace (click on the image to view product details)
Application Scope
This type of vacuum brazing furnace is widely used to braze PCD, PCBN, CVD diamond inserts for metal cutting, stone machining, aerospace and automotive machining tools. It serves cutting tool manufacturers, superhard material factories and material research laboratories.
FAQ
Q: Why vacuum brazing instead of induction brazing for PCD PCBN tools?
A: Vacuum environment prevents diamond graphitization and oxidation. It achieves higher and more uniform brazing strength, less workpiece deformation and stable batch consistency.
Q: What brazing filler metal is commonly used in this furnace?
A: Ag-Cu-Ti active brazing alloy is the mainstream choice, which can form reliable metallurgical bonding between superhard materials and carbide substrates under vacuum high temperature.
