Graphite vacuum sintering furnace
Maximum temperature: ≤ 1800℃
Ultimate vacuum: 0.5pa (empty furnace, cold state, purified)
Temperature uniformity: ±5°C
Temperature control accuracy: ±1°C
Pressure rising rate: /
Process application: This high-temperature vacuum sintering furnace is mainly used for heating and sintering metal refractory compound powder metallurgy materials, carbon and graphite products, ceramic materials, etc. in a vacuum state, and is widely used in metallurgy, chemical industry, petrochemical industry, high-energy physics, aerospace, electronics and other fields .Chat OnlineLeave Message
Introduction

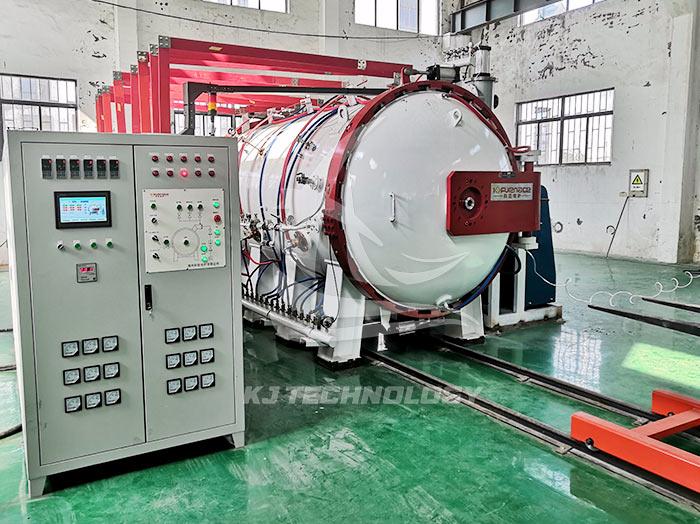

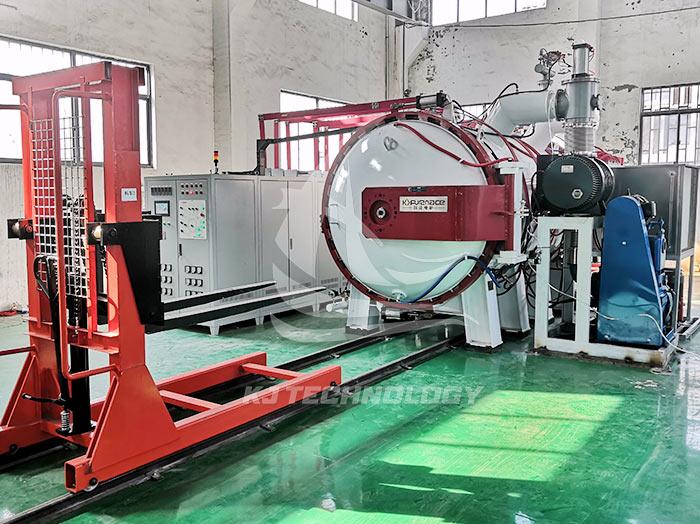

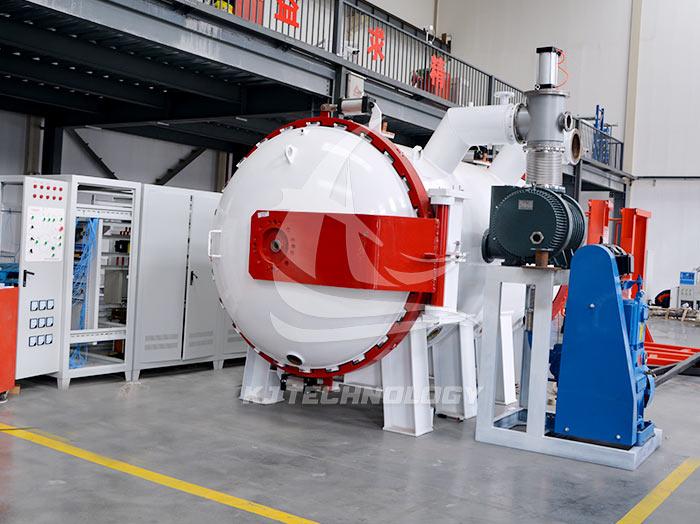

The KJ-VS1800-936CWD high-temperature vacuum sintering furnace is a horizontal steel structure furnace body, and the furnace door adopts a double-door structure with two sides and side openings. It is composed of a furnace body, a vacuum system, a water cooling system, an electrical part, and a feeding cart.
Application
This high-temperature vacuum sintering furnace is mainly used for heating and sintering metal refractory compound powder metallurgy materials, carbon and graphite products, ceramic materials, etc. in a vacuum state, and is widely used in metallurgy, chemical industry, petrochemical industry, high-energy physics, aerospace, electronics and other fields .
Treatment material
Advantages
- Integrated design，with high degree of automation, intuitive operation and powerful functions.
- Equipped with a vacuum unit
- Multiple sintering processes
- Fast heating rate, good furnace temperature consistency.
Integrated design, compact structure, beautiful appearance.It adopts touch screen + PLC control mode, with high degree of automation, intuitive operation and powerful functions.
More ProductsOnline consultationEquipped with a vacuum unit, it can realize heat treatment of materials under high temperature and high vacuum.
More ProductsOnline consultationMultiple sintering processes can be stored, and can be called directly after editing once. The sintering data can be recorded in real time, can be queried, and can be exported in the form of Excel.
More ProductsOnline consultationMulti-temperature zone temperature control, fast heating rate, good furnace temperature consistency.
More ProductsOnline consultation
Specifications - Technical Data
| Model | KJ-VS1800-936CWD | ||
| Material area size | 600×600×2600mm Customizable | ||
| Heating element | Graphite rod | ||
| Working temperature | ≤ 1800℃ | ||
| Number of heating zones | 3 zone Customizable | ||
| thermocouple | Tungsten sheath thermocouple | ||
| ultimate vacuum | 0.5pa (empty furnace, cold state, purified) | ||
| Vacuum unit | Roots pump, sliding valve pump unit (including pneumatic baffle valve, vacuum pipeline and vacuum measuring instrument, etc.) | ||
| Temperature control method | Touch screen + PLC + transformer Multi-stage programmable temperature control | ||
| Furnace door locking method | Pneumatic locking ring locking | ||
| inflation pressure | 0.02mpa | ||
| Other sizes available | |||
| work area size（mm） | volume (L) | work area size（mm） | volume (L) |
| 200*200*300 | 12 | 400*400*600 | 96 |
| 200*200*400 | 16 | 500*500*700 | 175 |
| 350*350*350 | 43 | 600*600*900 | 324 |
| More sizes can be customized | |||
The above parameters can be adjusted according to process requirements and are not used as acceptance basis. The specific technical plan and agreement shall prevail.
The above parameters can be adjusted according to process requirements and are not used as acceptance basis. The specific technical plan and agreement shall prevail.
Customized service
KJ Technology provides you with comprehensive customized services with excellent quality to meet your different needs.
- Furnace structure customization
We support customization of door structure, temperature zone control, electrical control, etc.
- Furnace chamber customization
Different furnace volumes and sizes can be customized according to the customer's processing volume.
- Atmosphere vacuum conditions
We can provide customers with different atmospheres and meet vacuum conditions.
- Heating temperature customization
We can provide customization of heating ranges in different temperature ranges from 0℃ to 2000℃.
