Custom Aluminum Nitride Vacuum Sintering Furnace for Lab & Industrial Production
10-14-2026 Author: KJ technology
Aluminum nitride (AlN) ceramic is a core advanced electronic ceramic material, widely used for semiconductor packaging, power device substrates, high-thermal-conductivity heat sinks, and electronic component manufacturing. AlN sintering puts strict demands on temperature accuracy, temperature uniformity, vacuum and nitrogen atmosphere control. Standard off-the-shelf furnaces often cannot satisfy diverse lab R&D and mass-production requirements. Custom aluminum nitride vacuum sintering furnaces are purpose-built to complete integrated debinding and high-temperature sintering for AlN green bodies, covering small-batch laboratory testing all the way to large-scale industrial continuous production.

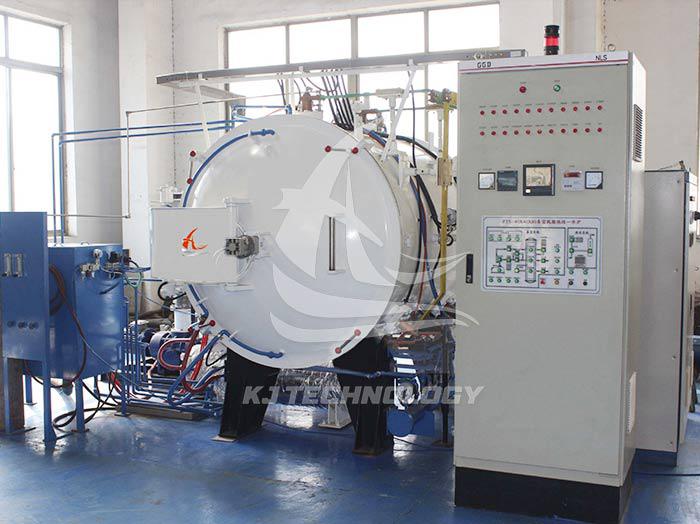

Commonly used aluminum nitride vacuum sintering furnace (click on the image to view product details)
Why Custom-Built Furnaces for AlN Ceramic Sintering？
Aluminum nitride is susceptible to oxidation and decomposition under improper thermal conditions. Sintering quality directly decides thermal conductivity, density and mechanical performance of finished AlN substrates. Generic high-temperature furnaces frequently face these pain points: poor temperature uniformity, unstable nitrogen atmosphere control, insufficient debinding exhaust capacity, and unsuitable hot-zone material matching.
Customized AlN vacuum sintering furnaces solve application-specific challenges:
1. Match chamber size: small compact chambers for laboratory sample testing, large-volume hot zones for industrial batch production.
2. Optimize hot-zone configuration: select graphite, molybdenum or tungsten heating assemblies according to customer’s anti-contamination requirements.
3. Upgrade vacuum & gas supply systems: support high vacuum, flowing nitrogen, nitrogen overpressure to suppress AlN decomposition at high temperature.
4. Custom debinding structure: strengthen exhaust channel to fully discharge organic binders, avoid residual carbon defects on AlN workpieces.
5. Tailor control logic: build dedicated sintering curve programs for different AlN powder formulas and sintering additives such as Y₂O₃.
Core Customizable Parameters for AlN Vacuum Sintering Furnace
1. Temperature System
- Max working temperature: commonly 1850℃-1950℃, matching mainstream AlN sintering temperature range of 1700-1900℃.
- Temperature uniformity: ±3℃ ~ ±5℃ inside effective hot zone, critical for consistent thermal conductivity across substrate batches.
- High-precision PID closed-loop control, supports multi-segment programmable heating-soaking-cooling curves.
2. Vacuum & Atmosphere System
- Ultimate vacuum: 1-5 Pa, realized by mechanical pump + molecular pump vacuum unit for pre-sintering vacuum debinding.
- Multi-channel gas inlet for high-purity nitrogen, argon; adjustable gas flow and pressure. High-purity nitrogen atmosphere prevents AlN from decomposing at high temperature.
- Sealed chamber structure to reduce air leakage rate, guarantee low-oxygen environment throughout the whole thermal cycle.
3. Hot-zone Customization
- Graphite hot zone: cost-effective, high maximum temperature, suitable for most AlN sintering projects.
- Molybdenum-tungsten metal hot zone: lower carbon contamination risk, ideal for high-purity semiconductor-grade AlN substrates.
- BN-protected fixture structure options available upon request.
4. Debinding & Exhaust Structure
Custom-designed binder removal channel is essential. AlN green bodies contain organic binders which need slow volatilization between 400-600℃. Optimized exhaust design prevents decomposed binder residues from polluting heating elements and insulating layers, avoiding cracks or carbon contamination on AlN ceramic parts.
Application Scenarios: Lab R&D vs Industrial Batch Production
Laboratory-oriented Custom Version
Lab-scale custom AlN vacuum sintering furnaces feature compact footprint, small hot-zone volume, flexible parameter adjustment. Researchers can test different sintering formulas, explore soaking time, heating rate and atmosphere parameters for new AlN powder formulations. It fits university labs, material research institutes and new-product pre-development of ceramic enterprises.

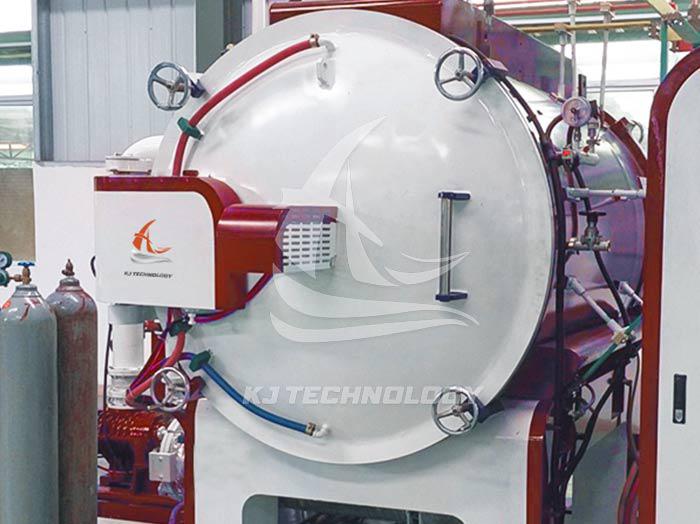

Industrial-grade Custom Version
Industrial custom furnaces focus on batch processing capacity, stable repeatability and production safety. Larger effective hot zone supports stacking multiple batches of AlN substrates. Automatic atmosphere adjustment, automatic pressure control and complete safety interlock protection reduce manual operation errors. This model serves mass production of AlN substrates for power semiconductors, new-energy electronic components and high-power LED modules.
Key Process Tips for AlN Sintering in Custom Vacuum Furnace
1. Debinding stage: Slow heating rate in 200-600℃ range. Fully remove organic binders before high-temperature sintering to avoid residual carbon.
2.Atmosphere switching: Complete vacuum debinding first, then fill high-purity nitrogen for high-temperature soaking, suppress AlN thermal decomposition above 1800℃.
3.Temperature holding: Maintain 2-6 hours soaking time at sintering temperature according to product thickness and sintering-additive proportion, to achieve full densification of AlN ceramics.
4.Cooling procedure: Do not open the furnace door at high temperature. Cool down under protective atmosphere to prevent workpiece oxidation.
How to Choose Custom Aluminum Nitride Vacuum Sintering Furnace？
When you plan to customize an AlN vacuum sintering furnace, confirm these core requirements with your equipment supplier:
1. Workpiece size, maximum batch quantity and target output.
2. Target sintering temperature, requirements for temperature uniformity.
3. Hot-zone material selection: graphite or metal hot-zone, anti-carbon-pollution requirements.
4. Vacuum level, nitrogen atmosphere or nitrogen overpressure demand.
5. Whether integrated debinding function is required.
6. Control mode: manual operation or full-automatic program operation.
A well-customized AlN vacuum sintering furnace can greatly improve finished-product yield, stabilize thermal conductivity performance of AlN ceramic products, and reduce trial-and-error costs for both laboratory research and industrial mass manufacturing. Custom services cover chamber dimension, temperature grade, vacuum unit configuration, atmosphere system and automatic control system according to actual process requirements.
