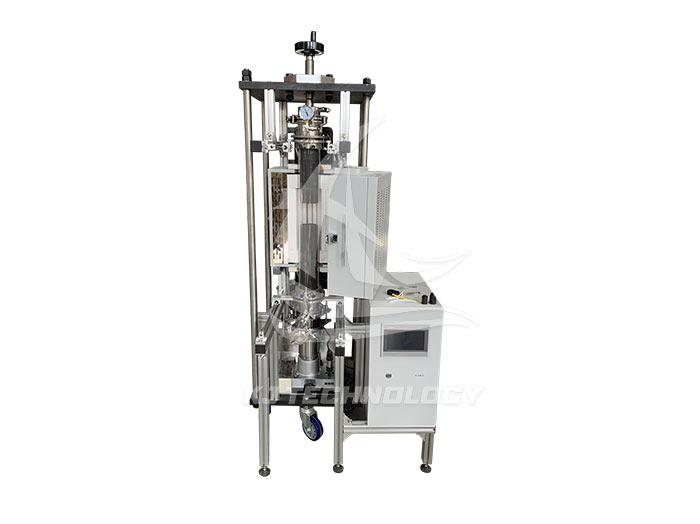

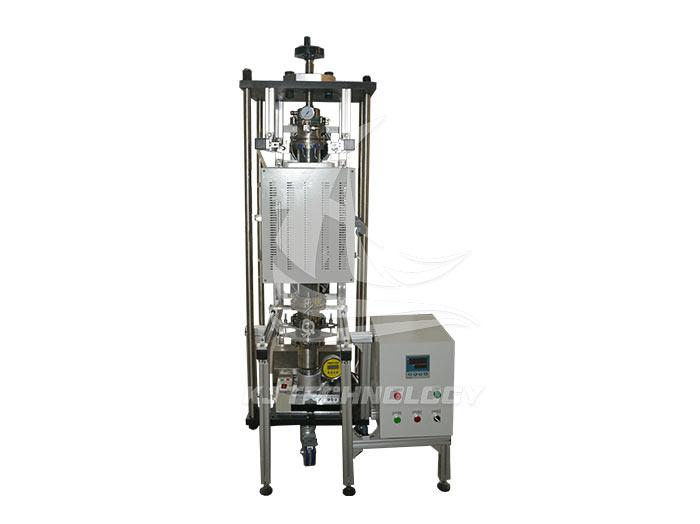

Vacuum tube hot press furnace
Maximum temperature: 1200°C
Ultimate vacuum: --
Temperature uniformity: ±1°C
Temperature control accuracy: ±1°C
Pressure rising rate: --
Process application: It is suitable for high-temperature hot forming of new materials such as powder metallurgy and functional ceramics. It can also be used to press powders or multi-layer wafers in a vacuum or gas protection environment.Chat OnlineLeave Message
Introduction
This vacuum tube hot pressing furnace features a double-shell structure and an intelligent programmable temperature control system with phase-shift triggering and thyristor control. The furnace chamber is constructed of alumina polycrystalline fiber and features a water-cooled flange seal. Air venting and vacuum pumping can be selected as needed, and the vacuum pump can be customized to meet customer requirements. This tubular hot pressing furnace offers advantages such as a balanced temperature field, low surface temperature, fast temperature ramp rates, and energy efficiency.
Application
It is suitable for high-temperature hot forming of new materials such as powder metallurgy and functional ceramics. It can also be used to press powders or multi-layer wafers in a vacuum or gas protection environment.
Treatment material
Advantages
- 1. Great temperature uniformity.
- 2. Over temperature protection and alarm.
- 3. PID automatic control via SCR power control.
Specifications - Technical Data
| Product name | Vacuum Tube Hot Press Furnace | ||
| Model | KJ-TD1200 | ||
| Max.temperature | 1200℃ | ||
| Working temperature | ≤1100℃ | ||
| Heating element | resistance wire | ||
| Thermocouple | N type | ||
| Tube material | quartz tube | ||
| Tube size | φ80-120mm | ||
| Heating zone | 300-440mm | ||
| Temperature control method | PID control and self-tuning adjustment, intelligent 30-segment programmable | ||
| Temperature control protection | Over-temperature and burnout protection function | ||
| Heating rate | Suggest 0~10°C/min | ||
| Temperature control accuracy | ±1℃ | ||
| Chamber material | High purity alumina refractory fiber | ||
| Maximum pressure | 50T | ||
| Cylinder stroke | 20mm | ||
| Other sizes can be customized according to customer needs | |||
The above parameters can be adjusted according to process requirements and are not used as acceptance basis. The specific technical plan and agreement shall prevail.
Customized service
KJ Technology provides you with comprehensive customized services with excellent quality to meet your different needs.
- Furnace structure customization
We support customization of door structure, temperature zone control, electrical control, etc.
- Furnace chamber customization
Different furnace volumes and sizes can be customized according to the customer's processing volume.
- Atmosphere vacuum conditions
We can provide customers with different atmospheres and meet vacuum conditions.
- Heating temperature customization
We can provide customization of heating ranges in different temperature ranges from 0℃ to 2000℃.
