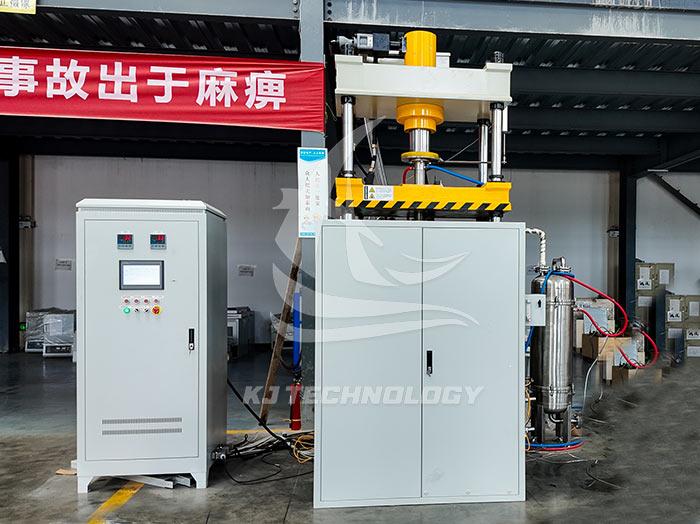

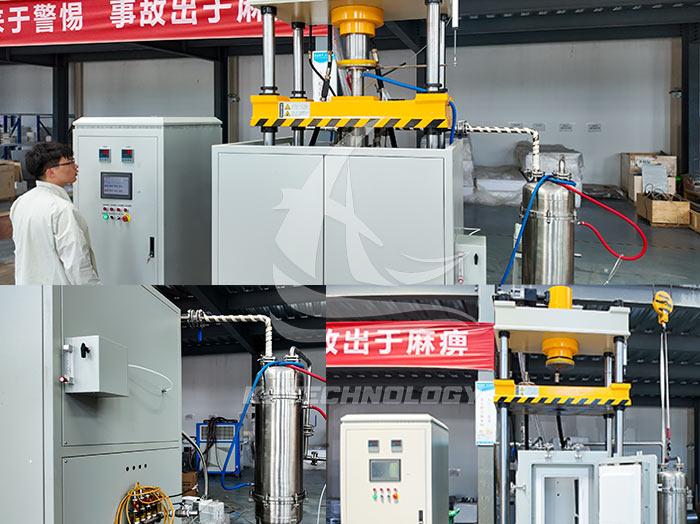

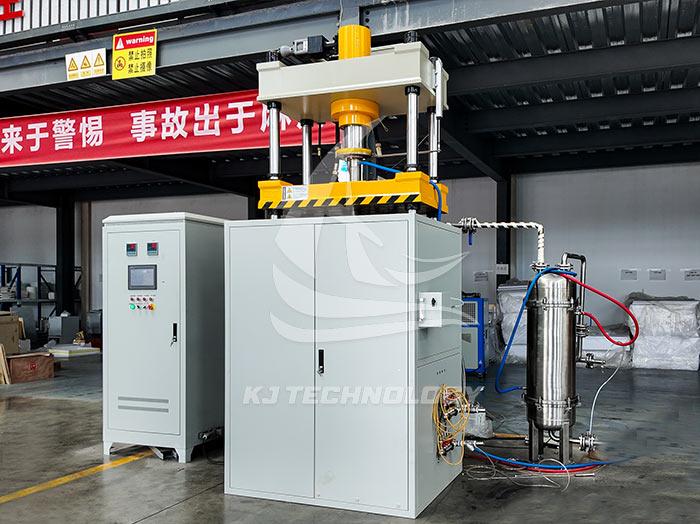

Vacuum atmosphere hot press furnace
Maximum temperature: 1100 ℃
Ultimate vacuum: 6.67*10-3Pa
Temperature uniformity: ±5℃
Temperature control accuracy: ±1℃
Pressure rising rate: ≤0.67Pa/h
Process application: It is suitable for high temperature hot forming of new materials such as powder metallurgy and functional ceramics. It is used for vacuum sintering of transparent ceramics, industrial ceramics and other metals and alloy materials composed of refractory metals, as well as high temperature sintering of ceramic materials such as silicon carbide and silicon nitride. It can also be used for heat treatment of powders and pressed green sheets at a temperature below the melting point of the main components, in order to improve their strength through metallurgical bonding between particles.Chat OnlineLeave Message
Introduction
The vacuum hot pressing furnace is a device that combines vacuum/atmosphere, hot pressing and high temperature sintering. It is suitable for high temperature hot forming of new materials such as powder metallurgy and functional ceramics. It is used for vacuum sintering of transparent ceramics, industrial ceramics and other metals and alloy materials composed of refractory metals, as well as high temperature sintering of ceramic materials such as silicon carbide and silicon nitride. It can also be used for heat treatment of powders and pressed green sheets at a temperature below the melting point of the main components, in order to improve their strength through metallurgical bonding between particles.
Application
It is suitable for high temperature hot forming of new materials such as powder metallurgy and functional ceramics. It is used for vacuum sintering of transparent ceramics, industrial ceramics and other metals and alloy materials composed of refractory metals, as well as high temperature sintering of ceramic materials such as silicon carbide and silicon nitride. It can also be used for heat treatment of powders and pressed green sheets at a temperature below the melting point of the main components, in order to improve their strength through metallurgical bonding between particles.
Treatment material
Advantages
- Double-layer stainless steel furnace body.
- Easy to open the door and high-precision pressure head design.
- With safety functions such as over-temperature alarm.
- High-precision calculation method
The furnace body adopts a double-layer stainless steel structure, which is water-cooled and has a low surface temperature. The stainless steel surface is precisely polished and beautiful.
More ProductsOnline consultationThe furnace body adopts a side-opening door structure, which is convenient for taking and placing materials. The upper pressure head of the equipment is fixed, which helps to press out materials with regular shapes.
More ProductsOnline consultationAll operations can be performed on the touch screen of the equipment, which is convenient and fast. With over-temperature protection, over-pressure protection, under-water protection, etc., fully protect the safety of the equipment.
More ProductsOnline consultationThe touch screen is built-in with the company's self-developed PLC program, which embeds the pressure calculation formula. The user only needs to enter the diameter of the mold pressure head, and the program automatically calculates the pressure and pressure of the material.
More ProductsOnline consultation
Specifications - Technical Data
Model | KJ-VX1000-80CWD |
Heater voltage | Safety voltage |
Heating method | Silicon carbon rod |
Maximum temperature | 1100 ℃ |
Working temperature | ≤1000 ℃ |
Loading area size | Ф80×500 mm (D×H) Customizable |
Press head diameter | Ф80 mm Customizable |
Maximum pressure | 25 T (digital display, automatic pressure adjustment, automatic pressure maintenance) |
Pressure stroke | 0～220 mm (digital display) |
Hydraulic control | Electric |
Vacuum pressure | 0.1—0.1M Pa |
Temperature control method | N-type thermocouple |
Temperature control accuracy | ± 1 ℃ |
Atmosphere protection | Nitrogen, argon |
The above parameters can be adjusted according to process requirements and are not used as acceptance basis. The specific technical plan and agreement shall prevail.
The above parameters can be adjusted according to process requirements and are not used as acceptance basis. The specific technical plan and agreement shall prevail.
Customized service
KJ Technology provides you with comprehensive customized services with excellent quality to meet your different needs.
- Furnace structure customization
We support customization of door structure, temperature zone control, electrical control, etc.
- Furnace chamber customization
Different furnace volumes and sizes can be customized according to the customer's processing volume.
- Atmosphere vacuum conditions
We can provide customers with different atmospheres and meet vacuum conditions.
- Heating temperature customization
We can provide customization of heating ranges in different temperature ranges from 0℃ to 2000℃.
