Industrial High Temperature Atmosphere Brazing Furnace with Protective Gas System

10-10-2026       Author: KJ technology

The industrial high temperature atmosphere brazing furnace with protective gas system is a core piece of precision heat treatment equipment widely used in modern metal processing, aerospace, automotive, electronic manufacturing, and new energy industries. Different from ordinary welding and heating furnaces, this professional brazing furnace realizes oxidation-free, high-strength, and deformation-free metal brazing through accurate high-temperature control and a fully sealed protective gas environment. It is the preferred equipment for high-precision component brazing and mass industrial production.

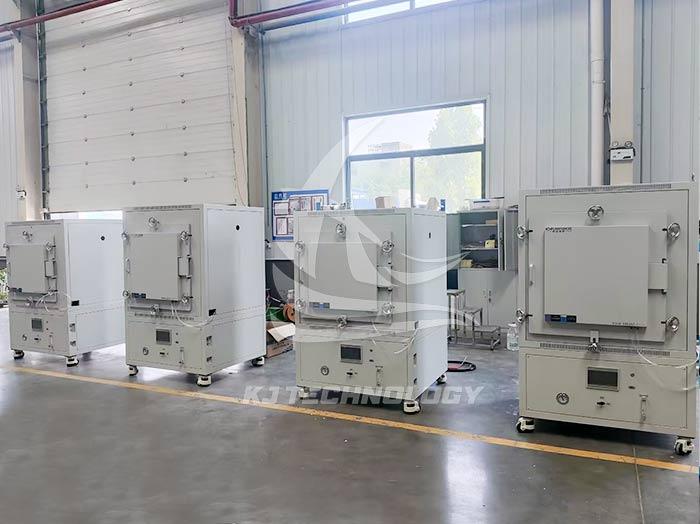

Customized atmosphere brazing furnace (click on the image to view product details)

Working Principle of Atmosphere Brazing Furnace

Brazing is a metal joining process that uses low-melting-point filler metal to bond base materials without melting the workpiece itself. The high-temperature atmosphere brazing furnace optimizes this process through two core systems: high-temperature heating system and protective gas circulation system. Before heating, the furnace chamber is fully purged and replaced with protective gas to eliminate oxygen, moisture and other oxidizing impurities inside the cavity. During the heating and constant-temperature brazing stage, the stable high-temperature environment melts the brazing filler metal, which fills the workpiece gaps through capillary action and forms a uniform, high-density metallurgical bond after cooling and solidification.

Equipped with an independent gas supply and circulation module, the furnace maintains a stable inert or reducing atmosphere throughout the brazing cycle, effectively avoiding common defects such as surface oxidation, discoloration, decarburization and poor weldability that frequently occur in traditional open brazing processes.

Core Advantages of Protective Gas System

The built-in protective gas system is the key to ensuring high-quality brazing results, distinguishing industrial atmosphere brazing furnaces from ordinary heat treatment furnaces.

1. Oxidation-free Brazing Effect

The system supports precise delivery of inert gases such as nitrogen and argon, as well as reducing gases including hydrogen and forming gas. It maintains ultra-low oxygen and dew point levels in the sealed furnace chamber, completely isolating air contact. Workpieces after brazing feature bright and clean surfaces without oxidation spots, no need for secondary polishing or cleaning, greatly improving product yield.

2. Accurate Gas Flow and Pressure Control

Configured with high-precision gas flow meters and automatic pressure adjustment devices, the equipment realizes real-time monitoring and stable output of gas flow rate and furnace pressure. It avoids product quality instability caused by excessive or insufficient gas supply, ensuring consistent brazing effects for each batch of workpieces.

3. Multi-process Atmosphere Adaptability

The modular gas system supports single-gas protection and mixed-gas proportional distribution, meeting diversified process requirements such as vacuum pre-purging, atmospheric brazing, and gradient cooling. It adapts to brazing processes of stainless steel, copper alloy, aluminum alloy, high-temperature alloy and other special metal materials.

4. Energy-saving and Environmentally Friendly Design

With closed gas circulation and tail gas recovery treatment structure, it reduces gas consumption while avoiding exhaust pollution. The fully sealed furnace body effectively reduces heat loss, improving overall equipment energy efficiency.

Key Equipment Features and High-temperature Performance

This industrial high-temperature atmosphere brazing furnace adopts high-quality high-temperature resistant heating elements and premium refractory insulation materials, supporting long-term stable operation under high-temperature conditions. The equipment features multi-zone independent PID constant temperature control, with temperature control accuracy up to ±1℃ and uniform furnace temperature field, ensuring that all workpieces in the chamber obtain consistent heating temperature and brazing quality.

The whole furnace body adopts precision welding and multi-layer sealing structure, which effectively prevents external air from penetrating into the furnace chamber and solves the problem of atmosphere failure caused by poor sealing of traditional brazing furnaces. It supports multiple working modes such as intermittent brazing and semi-continuous brazing, compatible with laboratory small-batch testing and industrial large-scale mass production.

Wide Industrial Application Scenarios

Benefiting from its high precision, high stability and strong process adaptability, the high-temperature atmosphere brazing furnace with protective gas system covers multiple high-end manufacturing fields:

- Automotive Industry: Brazing of automotive heat exchangers, fuel system parts, turbocharger components and aluminum alloy structural parts

- Aerospace Field: High-temperature alloy parts, precision engine components and aviation structural parts brazing

- Electronic Manufacturing: Brazing of copper conductive parts, precision hardware and electronic structural components

- New Energy Industry: Brazing and heat treatment of new energy battery structural parts and thermal management components

- HVAC and Refrigeration: Brazing of copper-aluminum heat exchangers and refrigeration equipment components

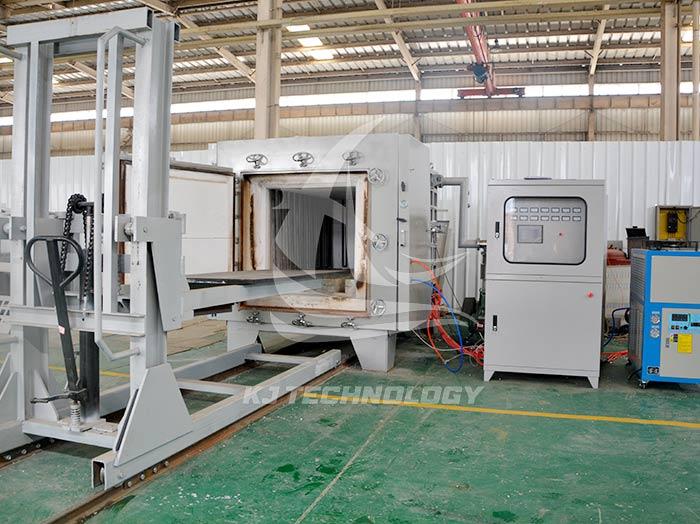

Customized industrial atmosphere brazing furnace (click on the image to view product details)

Professional Selection Guidelines for Atmosphere Brazing Furnace

Conclusion

The industrial high-temperature atmosphere brazing furnace with protective gas system is an indispensable core equipment for modern high-precision metal brazing processes. Relying on precise high-temperature control and stable protective gas atmosphere, it solves the pain points of oxidation, discoloration and low bonding strength in traditional brazing processes. With reliable performance, strong process adaptability and high production efficiency, it has become the mainstream choice for high-end manufacturing industries such as automobiles, aerospace, electronics and new energy. Customized furnace size, temperature range and gas system configurations are available to meet diverse brazing process requirements of different industries.
