Horizontal vacuum diffusion welding furnace is a high-precision solid-state welding equipment integrating horizontal structure, vacuum environment and diffusion bonding technology. It is widely used in aerospace, new energy, semiconductor, medical equipment, metallurgy and other high-end manufacturing fields, mainly for high-reliability connection of dissimilar metals, refractory metals, ceramics and composite materials. Compared with vertical vacuum diffusion welding furnaces and traditional welding equipment, horizontal vacuum diffusion welding furnaces have unique core advantages in loading and unloading operation, welding precision, production efficiency and equipment adaptability. This article details its core highlights, helps global users accurately understand the equipment value, and provides professional reference for equipment selection and process optimization.
1. Horizontal Structure Design, Easy Loading and Unloading, Suitable for Large and Heavy Workpieces
The most prominent advantage of the horizontal vacuum diffusion welding furnace is its horizontal layout, which is equipped with side door opening or bottom door opening structure, and matched with guide rail feeding and unloading system, making the loading and unloading operation more convenient and efficient. Compared with the vertical type, it does not need to lift the workpiece vertically, which can effectively avoid deformation or damage of large, heavy or fragile workpieces during loading and unloading. It is especially suitable for welding large-size, heavy-duty workpieces (such as aerospace engine components, nuclear reactor parts, large-scale composite structural parts) and batch workpieces. At the same time, the horizontal structure can make full use of the length of the furnace body, expand the effective welding area, and realize batch welding of multiple workpieces at one time, which greatly improves the production efficiency and is more in line with the large-scale production needs of overseas factories.
2. High Vacuum Environment, Ensuring Clean Welding and Avoiding Oxidation Pollution
The horizontal vacuum diffusion welding furnace is equipped with a high-efficiency vacuum system, which can easily achieve a high vacuum degree of 10⁻³ ~ 10⁻⁵ Pa, and some high-end models can reach 5×10⁻⁴ Pa. The high vacuum environment can effectively remove oxygen, water vapor, impurity gases and other harmful substances in the furnace, completely avoid oxidation, decarburization and pollution of the workpiece surface during the welding process, and ensure the cleanliness of the welding interface. This is particularly critical for welding active metals (such as titanium, zirconium), refractory metals and precision components. The welded joint after treatment has a bright surface, no oxide scale and no impurities, and can retain the original performance of the base material to the greatest extent without secondary processing (such as pickling and polishing), which reduces production costs and improves product added value.
3. Precise Control of Welding Parameters, High Welding Precision and Stable Joint Quality
Diffusion welding relies on the precise collaborative control of four core process parameters: temperature, pressure, time and vacuum degree, and the horizontal vacuum diffusion welding furnace has excellent performance in parameter control. On the one hand, it adopts advanced PLC intelligent control system and multi-zone independent temperature control technology, with a temperature control accuracy of ±1℃ and a temperature uniformity of ≤±3℃ in the effective heating zone, which can accurately simulate the complex welding curve of heating, heat preservation, pressure application and cooling, ensuring the consistency of each batch of workpieces. On the other hand, it is equipped with a high-precision servo pressure system, with a pressure control accuracy of up to ±1‰, which can apply uniform pressure to the workpiece, promote the full contact of the welding surface and the sufficient diffusion of atoms, and finally form a firm metallurgical bond. The welded joint has high strength, good toughness, and its performance is equivalent to that of the base material, which can effectively avoid welding defects such as pores, cracks and segregation caused by traditional melting welding.

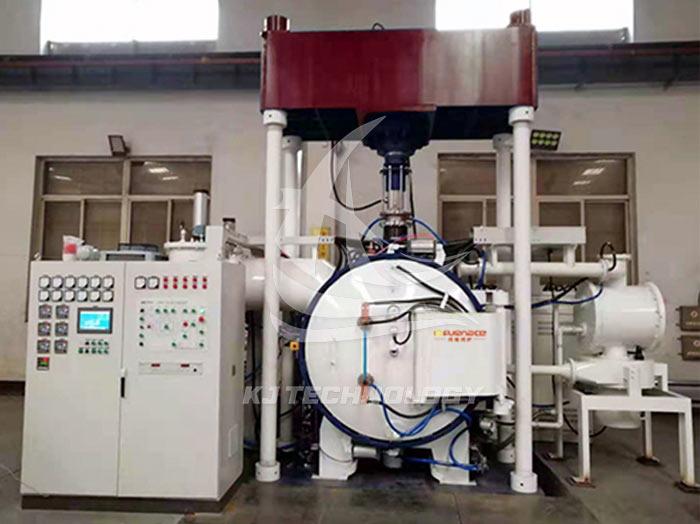

Customized vacuum diffusion welding furnace (click on the image to view product details)
4. Strong Adaptability, Suitable for Welding of Various Materials and Workpieces
The horizontal vacuum diffusion welding furnace has strong adaptability and can meet the welding needs of various materials and workpiece types, which is one of its core competitiveness. It can not only realize the welding of similar metals (such as stainless steel, high-temperature alloy), but also complete the reliable connection of dissimilar metals (such as copper and steel, titanium alloy and aluminum alloy), and even realize the bonding of metals and ceramics (such as alumina, silicon carbide) and composite materials (such as carbon fiber reinforced composite materials and metals). In terms of workpiece shape and size, it can adapt to irregular workpieces, thin-walled parts, precision components and large-scale structural parts, covering small-batch trial production, medium-batch production and large-scale mass production scenarios, and meeting the personalized welding needs of different industries such as aerospace, new energy and medical equipment.
5. High Automation Degree, Safe and Convenient Operation, Stable and Reliable Operation
Modern horizontal vacuum diffusion welding furnaces are fully equipped with automatic control systems, which can realize automatic vacuum pumping, temperature rise, pressure application, heat preservation, cooling and vacuum release, and support one-key start and unattended operation, which greatly reduces labor intensity and avoids human operation errors. At the same time, the equipment is equipped with a complete safety protection system, including over-temperature alarm, vacuum abnormal alarm, pressure relief device, emergency stop protection, water cooling failure alarm and other functions, which can effectively avoid safety risks such as over-temperature, vacuum leakage and furnace body damage, and ensure the safety of operators and equipment. In addition, the horizontal structure has excellent sealing performance, adopting special high-temperature sealing structure (such as bellows seal), with extremely low gas leakage rate, stable operation, and can meet the demand of 24-hour continuous operation, improving equipment utilization rate.
6. Energy Saving and Environmental Protection, Conforming to Global Green Production Standards
The horizontal vacuum diffusion welding furnace has obvious advantages in energy saving and environmental protection. On the one hand, it adopts a full-metal reflective screen structure and multi-layer high-quality refractory fiber insulation layer, which has good thermal insulation performance, can effectively reduce heat loss, and the heat utilization rate is increased by more than 30% compared with traditional welding equipment. On the other hand, the equipment adopts an intelligent power regulation system, which can automatically adjust the heating power according to the welding stage, avoid invalid energy consumption, and reduce the energy consumption per unit product by 20%-40%. At the same time, the whole welding process is carried out in a closed vacuum environment, no harmful gases (such as sulfur dioxide, nitrogen oxides) are emitted, no waste water or waste residue is generated, which conforms to the global green production and low-carbon environmental protection trends, and meets the environmental protection standards of various countries.
7. Compact Structure, Easy Installation and Maintenance, Low Long-Term Operation Cost
The horizontal vacuum diffusion welding furnace adopts an integrated design, with a compact structure and reasonable layout, which is easy to install and debug, and is suitable for factories with limited space. The core components (such as vacuum pump, heating element, pressure sensor) are standardized parts, which are easy to replace and maintain, reducing maintenance cost and equipment downtime. In addition, the heating element (such as molybdenum wire, molybdenum-lanthanum alloy rod) and sealing parts are made of high-temperature resistant, corrosion-resistant and wear-resistant high-quality materials, which have a long service life, reduce the cost of component replacement, and further reduce the long-term operation cost of enterprises.
Conclusion
The core advantages of the horizontal vacuum diffusion welding furnace can be summarized as: horizontal structure for easy loading and unloading, high vacuum for clean welding, precise parameter control for stable quality, strong adaptability for multi-scenario application, high automation for safe operation, energy saving and environmental protection for cost reduction, and compact structure for easy maintenance. It perfectly solves the pain points of traditional welding equipment such as difficult loading and unloading of large workpieces, poor welding precision, easy oxidation of joints, and narrow adaptability, and also makes up for the deficiencies of vertical vacuum diffusion welding furnaces in handling large and heavy workpieces.
For global enterprises pursuing high welding quality, high production efficiency and low operation cost, the horizontal vacuum diffusion welding furnace is not only the optimal choice for equipment selection, but also an important support for promoting technological upgrading and enhancing core competitiveness. For users with special welding needs, customized solutions can be provided according to material characteristics, workpiece size, welding precision and vacuum degree requirements to achieve precise matching of equipment and processes and maximize equipment value.
