Characteristics of vacuum annealing furnace
04-10-2026 Author: KJ technology
Vacuum annealing furnace is a high-precision heat treatment equipment widely used in aerospace, automotive, electronics, metallurgy, semiconductor, and other high-tech industries. It realizes annealing, tempering, stress relief, and other heat treatment processes in a vacuum environment, which can effectively avoid material oxidation, improve product performance, and ensure processing accuracy. Compared with traditional atmospheric annealing furnaces, vacuum annealing furnaces have unique advantages in processing effect, product quality, and environmental protection. This article details the core features of vacuum annealing furnaces, helping global users understand their working characteristics and application value, and providing a reference for equipment selection.

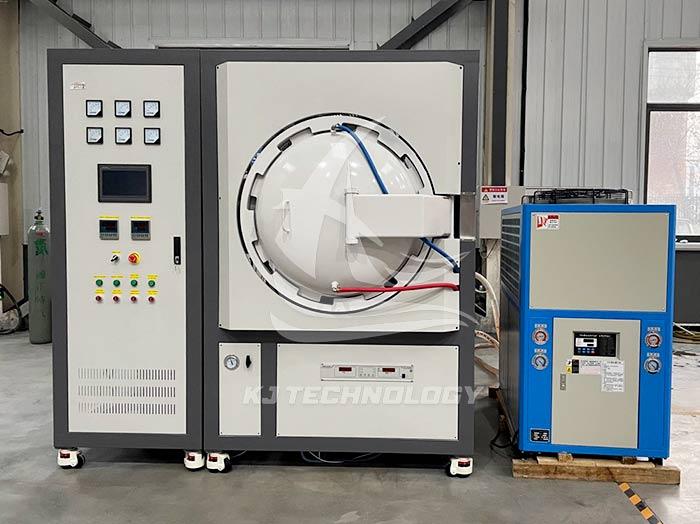

Commonly used vacuum annealing furnaces (click on the image to view product details)
1. Vacuum Environment Protection, No Oxidation and Decarburization
The most prominent feature of the vacuum annealing furnace is that the entire heat treatment process is carried out in a high-vacuum environment (usually the vacuum degree is 10⁻³ ~ 10⁻⁵ Pa). In the vacuum state, the oxygen, water vapor, and other oxidizing gases in the furnace are effectively removed, which can completely avoid the oxidation, decarburization, and carburization of the workpiece during the annealing process. This is particularly important for high-precision parts, such as aerospace components, semiconductor chips, and precision metal parts. The surface of the workpiece treated by the vacuum annealing furnace is clean, bright, free of oxide scale and color change, and does not require secondary processing (such as pickling and polishing), which greatly reduces the processing cost and improves production efficiency.
2. High Temperature Control Precision, Stable Process Repeatability
Vacuum annealing furnaces adopt advanced intelligent temperature control systems, usually equipped with PID temperature control technology and multi-point temperature measurement sensors. The temperature control precision can reach ±1℃, and the temperature uniformity in the furnace is good (the temperature difference in the effective heating zone is ≤±5℃). At the same time, the equipment supports programmable temperature rise, heat preservation, and cooling curves, which can accurately simulate various complex annealing processes and ensure the consistency and repeatability of each batch of workpieces. For industries with strict requirements on product performance (such as semiconductor and automotive parts), stable process control is crucial to ensuring product qualification rate.
3. Improve Material Performance, Enhance Product Quality
Under vacuum conditions, the thermal conductivity of the workpiece is more uniform, and the internal stress of the material can be fully released during the annealing process, which effectively improves the toughness, ductility, and dimensional stability of the material. At the same time, the vacuum environment can promote the diffusion of impurities in the material, reduce the number of internal defects (such as pores and inclusions), and improve the density and mechanical properties of the workpiece. For example, after vacuum annealing, the hardness of metal materials can be adjusted to the optimal range, and the fatigue life can be increased by 20% ~ 50%; for semiconductor materials, vacuum annealing can improve the crystal quality and electrical performance, ensuring the stability of subsequent processing.
4. Wide Application Range, Adapt to Various Materials and Workpieces
Vacuum annealing furnaces have strong adaptability and can handle a variety of materials, including carbon steel, alloy steel, stainless steel, copper, aluminum, titanium, and their alloys, as well as semiconductor materials, ceramic materials, and composite materials.In terms of workpiece size and shape, it can adapt to small precision parts (such as electronic components), large-scale structural parts (such as aerospace engine parts), and irregularly shaped workpieces. In addition, according to different process requirements, the vacuum annealing furnace can be divided into high-temperature vacuum annealing furnace (above 1000℃), low-temperature vacuum annealing furnace (below 600℃), and other types, which can meet the diverse needs of different industries.
5. Energy Saving and Environmental Protection, Conform to Global Green Production Standards
Compared with traditional annealing furnaces, vacuum annealing furnaces have obvious energy-saving advantages. The vacuum environment has good thermal insulation performance, which can reduce heat loss and improve heat utilization rate. The energy consumption per unit product is 30% ~ 50% lower than that of atmospheric annealing furnaces. At the same time, the equipment adopts a closed structure, no harmful gases (such as sulfur dioxide and nitrogen oxides) are emitted during the operation process, and no waste water or waste residue is generated, which conforms to the global green production and low-carbon environmental protection trends. It is an environment-friendly heat treatment equipment that meets the environmental protection standards of various countries.
6. High Automation Degree, Safe and Easy to Operate
Modern vacuum annealing furnaces are equipped with full-automatic control systems, which can realize automatic vacuum pumping, temperature rise, heat preservation, cooling, and vacuum release. The operation interface is simple and intuitive, and the operator can complete the process setting and start-up operation with one key, which greatly reduces the labor intensity. At the same time, the equipment is equipped with a complete safety protection system, including over-temperature alarm, vacuum degree abnormal alarm, pressure relief device, and emergency stop button, which can effectively avoid safety accidents such as furnace explosion and overheating, and ensure the safety of operators and equipment.
7. Compact Structure, Small Occupation Area, Easy to Install and Maintain
Most vacuum annealing furnaces adopt an integrated design, with compact structure and small occupation area, which is suitable for factories with limited space. The furnace body is made of high-temperature resistant and corrosion-resistant materials, which has good wear resistance and long service life. The key components (such as vacuum pump, heating element, and temperature sensor) are standardized parts, which are easy to replace and maintain, reducing the maintenance cost and downtime of the equipment.

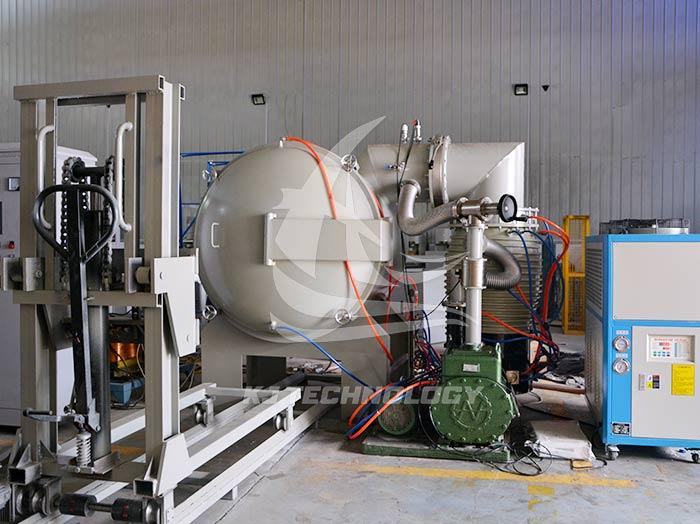

Customized industrial vacuum annealing furnace (click on the image to view product details)
Conclusion
The core features of the vacuum annealing furnace can be summarized as: vacuum anti-oxidation, high temperature control precision, excellent material performance improvement, wide application range, energy saving and environmental protection, high automation, and easy operation. It solves the pain points of traditional annealing furnaces such as easy oxidation of workpieces, poor temperature control, and high energy consumption, and has become an indispensable key equipment in the high-precision heat treatment field.
Whether it is the production of high-precision parts in the aerospace industry, the processing of semiconductor materials, or the heat treatment of automotive parts, the vacuum annealing furnace can provide stable and reliable processing solutions, help enterprises improve product quality, reduce production costs, and enhance market competitiveness. For users with special process requirements, customized vacuum annealing furnace solutions can be provided according to the material characteristics, workpiece size, and temperature requirements.
