What are the characteristics of high-temperature sintering furnaces for aluminum nitride?

03-19-2026       Author: KJ technology

Aluminum nitride (AlN), as an important advanced ceramic material, has excellent properties such as high thermal conductivity, high resistivity, low dielectric constant, and thermal expansion coefficient that matches silicon. It is widely used in electronic device packaging, heat dissipation substrates, high-frequency devices, and other fields. The high-temperature sintering of aluminum nitride is a key step in its preparation process, and the aluminum nitride high-temperature sintering furnace is the core equipment to achieve this process. The following are the main characteristics of the high-temperature sintering furnace for aluminum nitride:

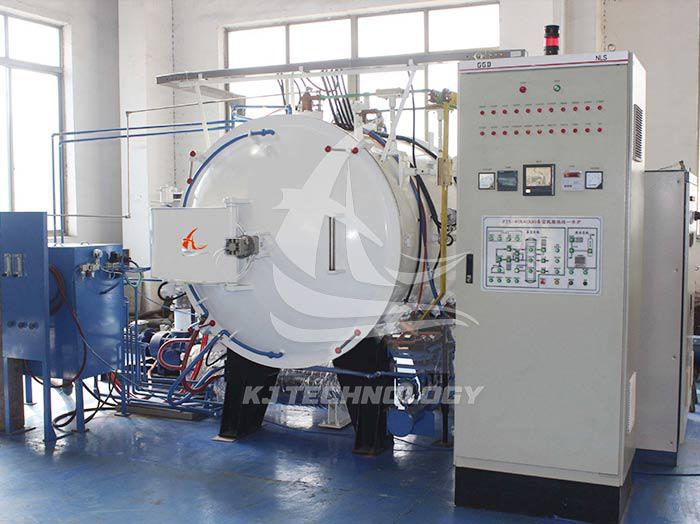

Large furnace aluminum nitride sintering furnace (click on the picture to view product details)

1. High temperature performance

Wide temperature range: The sintering temperature of aluminum nitride is usually between 1800 ° C and 2200 ° C. High temperature sintering furnaces can provide and maintain such high temperatures stably, meeting the process requirements for aluminum nitride sintering.

Good temperature uniformity: The temperature distribution inside the furnace is uniform, ensuring that the aluminum nitride sample is heated evenly during the sintering process, avoiding problems such as sample deformation, cracking, or uneven performance caused by temperature differences. Through reasonable furnace design and heating element layout, combined with advanced temperature control system, precise and uniform control of furnace temperature can be achieved.

2. Atmosphere control

There are various types of atmospheres available: inert atmospheres (such as nitrogen and argon), reducing atmospheres, and other atmosphere environments can be provided to meet the requirements of different aluminum nitride sintering processes for atmospheres. For example, in some cases, sintering in an inert atmosphere is necessary to prevent oxidation of aluminum nitride at high temperatures.

Atmosphere purity control: With high-precision atmosphere purity control capability, it can effectively remove impurities such as oxygen and moisture in the atmosphere, ensuring the chemical stability of aluminum nitride during the sintering process. By equipping high-precision gas purification devices and flow control systems, precise control of atmosphere purity can be achieved.

3. Furnace structure and materials

High temperature resistance of furnace materials: High performance refractory materials and insulation materials are used to construct the furnace, such as alumina fiber, silicon carbide, etc. These materials can withstand high temperature environments and have good insulation performance, reducing heat loss and improving energy utilization efficiency.

Reasonable structural design: The furnace structure design considers the characteristics of aluminum nitride sintering, such as sample placement, gas flow path, etc., to ensure uniform heating of the sample and sufficient contact with the atmosphere during the sintering process. For example, adopting a multi-layer furnace structure or a special sample holder design can improve sintering efficiency and product quality.

4. Control system

Accurate temperature control: Advanced temperature control algorithms and high-precision temperature sensors are used to achieve precise control of sintering temperature. Being able to perform heating, insulation, and cooling operations according to the preset temperature curve, ensuring the accurate execution of the sintering process.

High degree of automation: equipped with automated operation functions, such as automatic opening and closing of furnace doors, automatic temperature rise and fall, automatic control of atmosphere flow, etc., reducing manual intervention, improving production efficiency and process stability. At the same time, equipped with a comprehensive fault diagnosis and alarm system, timely detection and handling of abnormal situations during equipment operation.

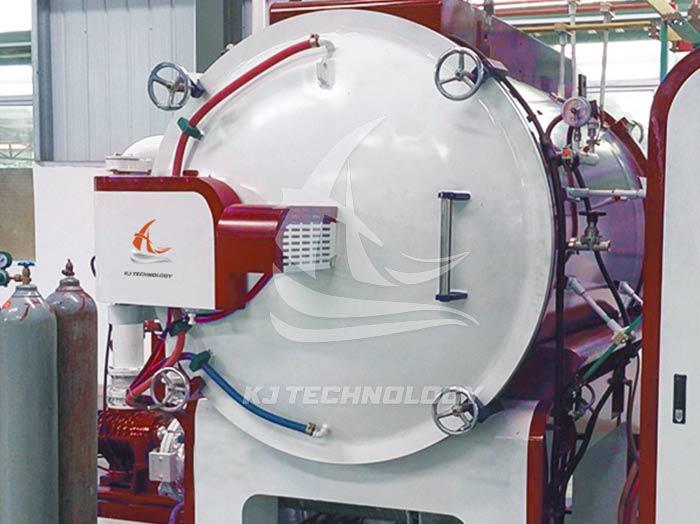

Industrial aluminum nitride sintering furnace (click on the picture to view product details)

5. Safety and Environmental Protection

Complete safety protection measures: Various safety protection devices have been installed, such as over temperature protection, over-current protection, leakage protection, etc., to ensure the safety of equipment and operators. In case of abnormal situations, it can automatically cut off the power or take other safety measures to prevent accidents from occurring.

Good environmental performance: Environmental requirements are fully considered in the design and operation process, and effective measures are taken to reduce the emission of pollutants such as exhaust gas and waste residue. For example, equipped with exhaust gas treatment devices to purify harmful gases generated during the sintering process and meet environmental emission standards.

The aluminum nitride high-temperature sintering furnace provides reliable guarantee for high-quality sintering of aluminum nitride materials with its excellent high-temperature performance, precise atmosphere control, reasonable furnace structure, advanced control system, and perfect safety and environmental protection measures. It plays an important role in the production and research and development of aluminum nitride materials.
