High Purity Aluminum Nitride Vacuum Atmosphere Sintering Furnace
05-20-2026 Author: KJ technology
1. Introduction of Aluminum Nitride Vacuum Atmosphere Sintering Furnace
The high purity aluminum nitride vacuum atmosphere sintering furnace is a professional high-temperature thermal processing equipment specially designed for Aluminum Nitride (AlN) ceramic materials. With the rapid development of semiconductor packaging, electronic heat dissipation, and new energy industries, aluminum nitride ceramics have become one of the most critical advanced ceramic materials due to their high thermal conductivity, low dielectric constant, and excellent insulation performance. To obtain high-density and high-purity AlN ceramic substrates, a strict vacuum and inert atmosphere sintering environment is indispensable.
This vacuum atmosphere sintering furnace provides a low-oxygen and clean sintering condition, effectively eliminating impurities and oxidation defects during the sintering process. It is widely used for AlN ceramic substrates, aluminum nitride heat dissipation parts, ceramic packaging components, and high-purity ceramic raw material sintering. As a reliable industrial heating device, it has become standard production equipment for advanced ceramic manufacturers and semiconductor material laboratories.

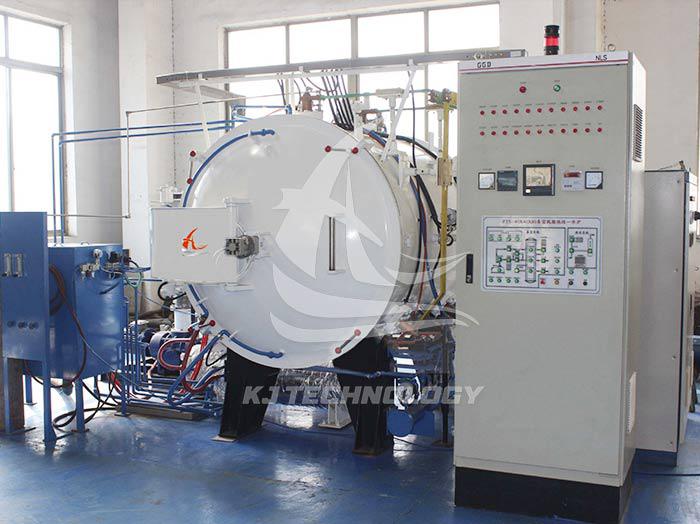

Commonly used aluminum nitride vacuum sintering furnace (click on the image to view product details)
2. Working Principle of AlN Vacuum Sintering Furnace
Aluminum nitride ceramics are extremely sensitive to oxygen and moisture at high temperatures. Oxidation reactions will seriously reduce thermal conductivity and product yield. The high purity aluminum nitride vacuum sintering furnace firstly extracts air and moisture inside the furnace chamber through a vacuum system to create a high-purity vacuum environment. Then, high-purity nitrogen or inert gas is injected to form a controllable atmosphere.
Equipped with high-precision temperature control system and uniform heating elements, the furnace realizes multi-stage programmable heating, constant temperature, and slow cooling curves. During the sintering process, the AlN powder undergoes densification crystallization under high temperature and oxygen-free conditions. The whole sintering process avoids oxidation, carbon contamination, and thermal stress deformation, ensuring stable density and excellent thermal conductivity of finished aluminum nitride ceramics.
3. Core Advantages of High Purity AlN Sintering Furnace
3.1 Ultra-low Oxygen Sintering Environment
The vacuum system can reach high vacuum level to remove residual air and moisture. The sealed furnace structure prevents external air from entering, which greatly reduces oxygen contamination. It effectively avoids the generation of aluminum oxide impurities and maintains high purity of AlN ceramic products.
3.2 Uniform Temperature Field and Precise Temperature Control
This vacuum atmosphere sintering furnace adopts high-quality heating elements and multi-point temperature detection sensors. The temperature control accuracy reaches ±1℃, and the temperature uniformity in the constant temperature area is excellent. Stable temperature distribution ensures consistent crystallization and density of each batch of aluminum nitride workpieces.
3.3 High Densification and Low Defect Rate
With reasonable heating rate and slow cooling design, the equipment effectively relieves internal thermal stress of ceramic blanks. The sintered AlN ceramics feature high density, smooth surface, uniform texture, no cracks, and excellent thermal conductivity, fully meeting the requirements of semiconductor and electronic industries.
3.4 Diversified Atmosphere Protection
The furnace supports vacuum state, pure nitrogen atmosphere, argon atmosphere, and mixed atmosphere. Customers can freely switch atmosphere modes according to different AlN formula and sintering processes. It is compatible with various sintering aids and high-purity ceramic raw materials.
3.5 Intelligent Control and Easy Operation
The furnace is equipped with an industrial touch screen and PLC intelligent control system. It supports multi-segment temperature curve programming, data recording, temperature curve export, and automatic operation. The system realizes unattended heating, heat preservation, and cooling processes, greatly reducing manual operation errors.
4. Main Technical Parameters
- Max Working Temperature: 1950℃
- Temperature Control Accuracy: ±1℃
- Vacuum Degree: 10⁻³ Pa high vacuum optional
- Atmosphere Type: Vacuum, Nitrogen, Argon, Mixed Inert Gas
- Heating Material: High purity graphite heating element
- Furnace Liner: Energy-saving fiber insulation material
- Cooling Mode: Natural cooling / Slow program cooling
- Application Materials: Aluminum Nitride Ceramics, Advanced Ceramic Substrates, Semiconductor Ceramic Components
5. Application Fields
The high purity aluminum nitride vacuum atmosphere sintering furnace covers laboratory research and industrial batch production. It is widely applied in multiple high-end industries:
- Semiconductor Industry: AlN ceramic substrate sintering, chip packaging ceramics
- Electronic Heat Dissipation: High thermal conductivity aluminum nitride heat sink parts
- New Energy Industry: Insulating ceramic components for power batteries
- Laboratory Research: Advanced ceramic material development and formula testing
- Aerospace Industry: High-purity insulating ceramic structural parts
6. Product Features of KJ technology
KJ technology is a professional manufacturer of vacuum sintering furnaces and high-temperature thermal treatment equipment. For aluminum nitride ceramic sintering requirements, we have optimized furnace sealing structure, heating system and vacuum configuration.
- High-strength sealed furnace body, excellent air tightness without air leakage
- Durable graphite heating system for long-term high-temperature operation
- Multiple safety protection: over-temperature alarm, power failure protection, pressure safety interlock
- Customizable furnace size, temperature range and atmosphere system
- Factory direct sales, providing one-stop technical solutions and after-sales service

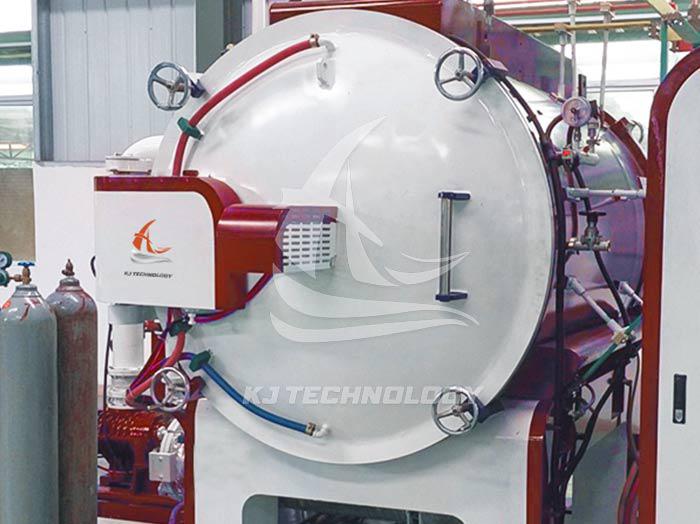

Industrial aluminum nitride vacuum sintering furnace (click on the picture to view product details)
7. Conclusion
The high purity aluminum nitride vacuum atmosphere sintering furnace is indispensable processing equipment for producing high-performance AlN ceramic materials. It perfectly solves common problems such as oxidation, impurity mixing, uneven density and low thermal conductivity during sintering. With stable performance, high atmosphere purity and intelligent operation, it is the best choice for advanced ceramic factories, semiconductor enterprises and scientific research laboratories.
If you need customized specifications and technical parameters of aluminum nitride vacuum sintering furnaces, please contact KJ technology. We provide professional OEM & ODM services for global customers.
