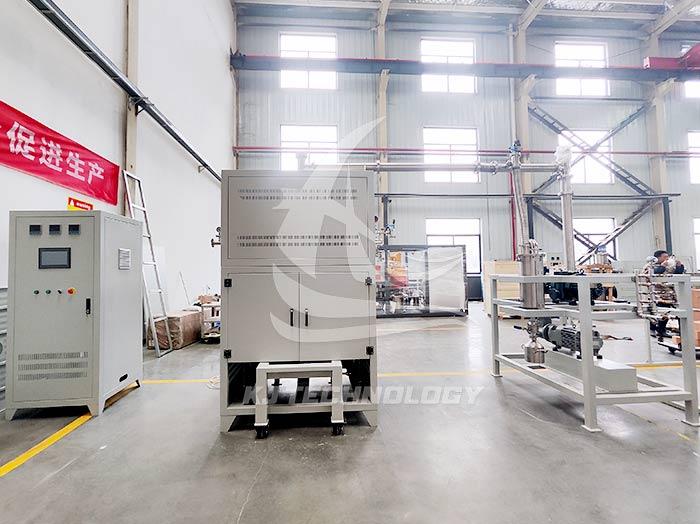

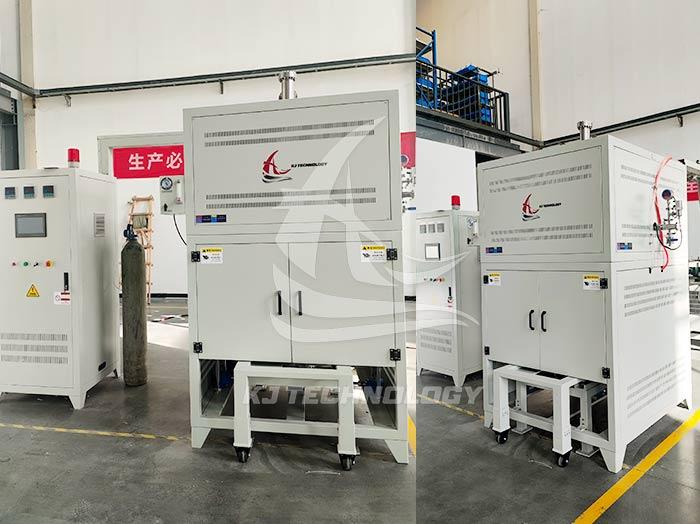

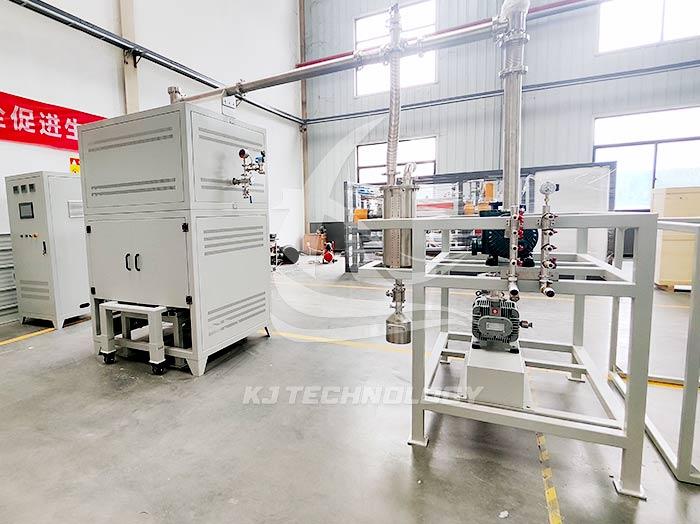

Externally heated vacuum sintering furnace
Maximum temperature: ≤900
Ultimate vacuum: <=10Pa(Cool State, empty furnace)
Temperature uniformity: ±1ºC
Temperature control accuracy: ±5°C
Pressure rising rate: /
Process application: This externally heated vacuum sintering furnace is the core equipment for the research and development and production of high-end materials. It combines high precision, high cleanliness and versatility, and is particularly suitable for the preparation of high-performance materials in the fields of aerospace, electronic devices, new energy, etc. It is suitable for high-temperature thermoforming of new materials such as powder metallurgy and functional ceramics, as well as vacuum sintering of transparent ceramics, industrial ceramics and other metals as well as alloy materials composed of refractory metals. .Chat OnlineLeave Message
Introduction
This equipment combines vacuum/atmosphere and high-temperature heating, the furnace uses SIC ROD heating elements with an operating temperature of up to 900 degrees Celsius. The bottom can be lifted and lowered to facilitate customers to pick up and place materials.
Application
This externally heated vacuum sintering furnace is the core equipment for the research and development and production of high-end materials. It combines high precision, high cleanliness and versatility, and is particularly suitable for the preparation of high-performance materials in the fields of aerospace, electronic devices, new energy, etc.
It is suitable for high-temperature thermoforming of new materials such as powder metallurgy and functional ceramics, as well as vacuum sintering of transparent ceramics, industrial ceramics and other metals as well as alloy materials composed of refractory metals. .
Treatment material
Advantages
- External heating system
- Controllable vacuum/atmosphere
- Precise temperature control
- Safe and stable
The heating element is located outside the furnace to avoid contamination of materials, and the temperature uniformity is high (within ±5°C).
More ProductsOnline consultationThe vacuum degree can reach 10⁻³~10⁻⁵ Pa, and it supports the introduction of inert gas (such as Ar, N₂) or reducing gas (such as H₂).
More ProductsOnline consultationThe maximum temperature can reach 1600~2200°C (depending on the heating element), which is suitable for high-temperature sintering needs.
More ProductsOnline consultationMulti-layer insulation design, combined with water cooling system, ensures long-term stable operation.
More ProductsOnline consultation
Specifications - Technical Data
Furnace Part | |
Furnace structure |
|
Display | 10” LCD Touch Screen, Independent electric cabinet |
Chamber size (Width x Height x Depth) | 600x600x520mm |
Stainless steel tank |
|
Working temperature | ≤900℃ |
Heating Element | SIC ROD |
Thermocouple |
|
Temperature Distribution | ±5℃ |
Heating rate | 0-10℃/min |
Temperature Control | The temperature control system adopts artificial intelligence adjustment technology, with PID adjustment and self-tuning functions 1. Using PID mode to adjust temperature control, 30 sections of heating and cooling programs can be set 2. Temperature control accuracy ±1ºC 3, with over-temperature protection, broken couple protection 4. The instrument has the function of temperature self-tuning |
Over-temperature alarm | Yes |
Over-current protection | Yes |
Thermocouple broken indication | Yes |
Suction mouth | 1 pc |
Gas Outlet Port | 1 pc |
Gas Inlet Port | 1 pc Support to insert protective gas |
Vacuum Breaker | 1pc |
Power supply | 380V 50Hz 3 phases |
Max. Power(for heating) | 32KW approx.(Base on final design) |
Vacuum Pump System | |
Max. Vacuum | <=10Pa(Cool State, empty furnace) |
Vacuum Valve | KF40 pneumatic flapper valve + KF25 pneumatic flapper valve |
Vacuum Gauge | Inficon vacuum gauge Measurement range: 3.8x10 -5 to 1125 Torr |
Water Chiller | |
Power Supply | 400V 50Hz 3 phases |
Cooling Capacity | 8.5KW |
Warranty | |
Warranty Range | One year limited warranty with life time support. (Consumable parts such as heater and crucibles are not covered by the warranty, please order the replacement at related products) |
Free technical support | Lifetime |
The above parameters can be adjusted according to process requirements and are not used as acceptance basis. The specific technical plan and agreement shall prevail.
Customized service
KJ Technology provides you with comprehensive customized services with excellent quality to meet your different needs.
- Furnace structure customization
We support customization of door structure, temperature zone control, electrical control, etc.
- Furnace chamber customization
Different furnace volumes and sizes can be customized according to the customer's processing volume.
- Atmosphere vacuum conditions
We can provide customers with different atmospheres and meet vacuum conditions.
- Heating temperature customization
We can provide customization of heating ranges in different temperature ranges from 0℃ to 2000℃.

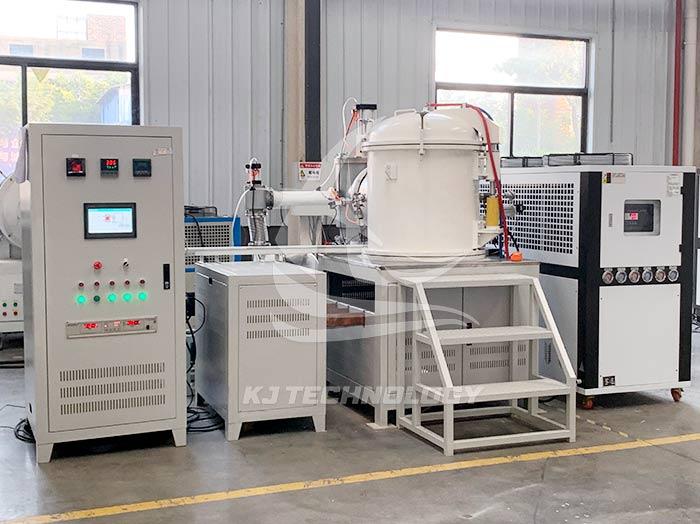

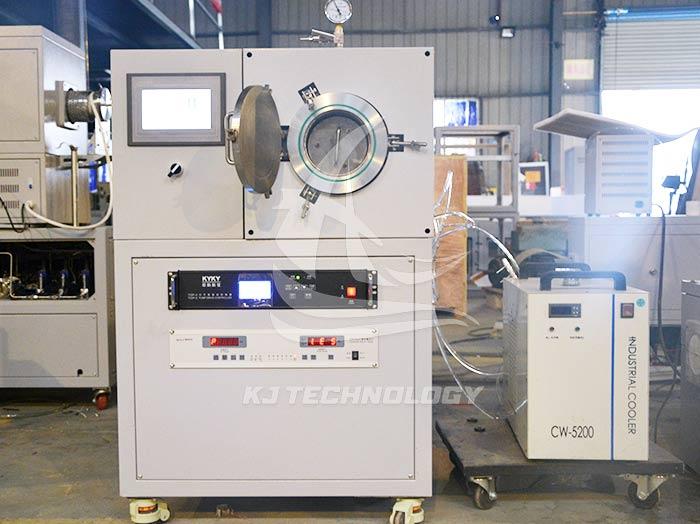

Popular Cases
