Vertical Cemented Carbide Vacuum Brazing Furnace｜Custom Industrial Brazing Equipment Manufacturer
08-26-2026 Author: KJ technology
The vertical cemented carbide vacuum brazing furnace is a high-precision industrial heat treatment equipment specially developed for carbide tool brazing, precision component bonding, and high-purity vacuum thermal processing. Different from traditional horizontal vacuum brazing furnaces, the vertical structural design optimizes heat circulation and workpiece placement, effectively solving common problems such as workpiece deformation, uneven brazing seams, and oxidation contamination during the brazing process. As a professional industrial brazing equipment manufacturer, we provide standardized and fully customized vertical vacuum brazing furnaces to meet diverse production and laboratory research needs for global industrial clients.
1. Working Principle of Vertical Cemented Carbide Vacuum Brazing Furnace
The vertical cemented carbide vacuum brazing furnace completes high-quality flux-free brazing in a high-vacuum oxygen-free environment. The entire processing procedure is carried out in a fully sealed furnace chamber with an advanced vacuum pumping system that exhausts internal air, moisture, and impurity gases to eliminate oxidation and carbonization of cemented carbide workpieces at high temperatures.
Relying on gravity-assisted gas natural convection, it balances the temperature field of upper and lower workpieces thoroughly. When reaching the set brazing temperature, the brazing filler metal melts and spreads evenly on the bonding surface. After precise constant temperature and slow cooling procedures, it forms dense, pore-free, and high-strength brazing joints, ensuring excellent dimensional accuracy and structural stability of cemented carbide tools and components.
2. Core Structural & Performance Advantages
Tailored for cemented carbide brazing and precision industrial thermal processing, the vertical vacuum brazing furnace boasts unique structural innovations and superior performance compared with conventional brazing equipment.
Vertical Gravity-Assisted Heating Design
The vertical cylinder structure optimizes the internal hot air circulation path. Gravity promotes natural convection of furnace gas, minimizes internal temperature gradients, and realizes overall uniform heating of long-strip, shaft-type, and plate-type carbide workpieces. It greatly reduces thermal stress and workpiece deformation, solving the deflection and uneven brazing defects easily occurred in horizontal furnaces when processing long workpieces.
High-Purity Vacuum Environment, Flux-Free Brazing
Configured with a multi-stage vacuum pump set, the furnace can stably maintain a high vacuum level during operation. The oxygen-free and dust-free internal environment decomposes the oxide layer on the surface of cemented carbide workpieces, improves the wettability of brazing filler metal, and produces ultra-clean brazing seams without pores, cracks, or oxidation spots. No flux is required in the whole process, avoiding subsequent cleaning procedures and residual pollution, which fully meets the high-standard processing requirements of precision carbide tools.
Intelligent Precise Temperature Control System
Adopting advanced PID intelligent temperature adjustment and multi-segment program control technology, the furnace supports customized heating, constant temperature, and cooling curves. It can store and export multiple sets of mature brazing processes, realizing one-click reproduction of stable processes. The temperature control accuracy and furnace temperature uniformity ensure consistent brazing quality for each batch of cemented carbide products, effectively improving product yield and production stability.
Durable High-Temperature Resistant Thermal Field
It can operate stably at high temperatures for a long time without deformation or powder falling, with low heat loss and high thermal efficiency, reducing enterprise energy consumption and operation costs.

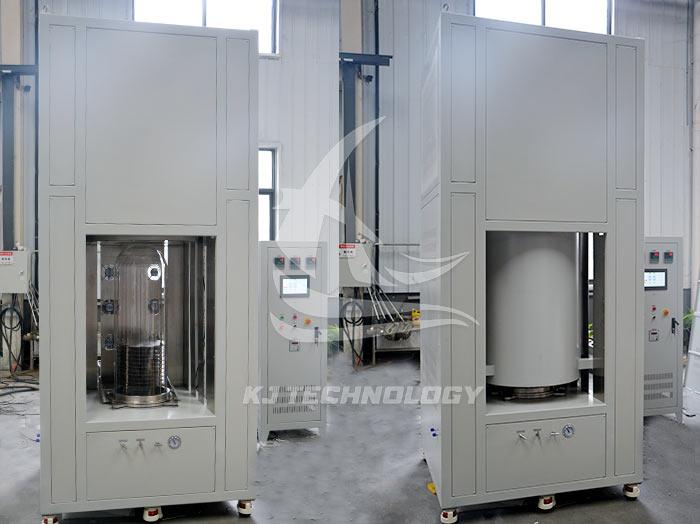

Customized vertical hard alloy vacuum brazing furnace (click on the picture to view product details)
3. Main Application Fields
The vertical cemented carbide vacuum brazing furnace is widely used in high-precision manufacturing industries that require oxidation-free, low-deformation, and high-strength brazing processes.
- Cemented Carbide Tool Manufacturing: Brazing of carbide turning tools, milling cutters, drill bits, tool inserts, and PCD composite tools, improving tool bonding strength and service life.
- Precision Mechanical Components: Vacuum brazing and stress relief annealing of alloy structural parts, long-axis workpieces, and thin-plate precision parts.
- Aerospace & Automotive Industry: High-purity brazing of heat-resistant alloy parts and precision mechanical components with strict requirements for surface finish and mechanical properties.
- New Energy & Electronic Industry: Brazing and thermal processing of special alloy components and precision conductive parts.
- Scientific Research & Laboratory: Customized high-temperature vacuum brazing experiments and new material process development.
4. Custom Industrial Brazing Equipment Solutions
As a professional manufacturer of vertical cemented carbide vacuum brazing furnaces, we support full non-standard customization to adapt to different workpiece sizes, brazing processes, and production capacities. Customizable parameters include furnace chamber size, maximum working temperature, vacuum degree, heating rate, intelligent control functions, and automated loading and unloading systems.
We can provide both small laboratory experimental equipment and large industrial mass-production brazing furnaces. Each set of equipment undergoes strict factory testing to ensure stable operation, high efficiency, and low failure rate, helping global customers solve various difficult vacuum brazing and heat treatment problems.
5. Reliable After-Sales & Technical Support
We adhere to the concept of quality first and service-oriented, providing one-stop services including equipment design, manufacturing, installation and commissioning, technical training, and lifelong after-sales maintenance. Our professional technical team offers 24/7 online consultation and rapid fault response, realizing timely closed-loop processing of equipment problems. Whether it is daily operation guidance, minor fault troubleshooting, or equipment overhaul and upgrading, we provide dedicated follow-up service to ensure stable and continuous production for customers.
Conclusion
The vertical cemented carbide vacuum brazing furnace has become core processing equipment in the carbide tool and precision machinery manufacturing industry by virtue of low deformation, high precision, clean brazing, and strong process compatibility. With rich manufacturing experience and mature customization technology, we provide cost-effective industrial vacuum brazing equipment and professional thermal processing solutions for global users. If you need equipment parameters, process solutions, and customized quotations, please feel free to contact us.
