Industrial Vacuum Oil Quenching Furnace
05-11-2026 Author: KJ technology
1. Introduction to Industrial Vacuum Oil Quenching Furnace
An industrial vacuum oil quenching furnace is a high-precision industrial heat treatment equipment designed for metal hardening, quenching, and tempering processes. It performs heating and quenching in a fully sealed vacuum environment to effectively prevent metal oxidation, decarburization, and surface contamination. Widely used in tool steel, alloy steel, stainless steel, and high-precision mechanical parts processing, the vacuum oil quenching furnace has become essential equipment in modern metal manufacturing industries.
Compared with traditional atmospheric quenching furnaces, industrial vacuum oil quenching furnaces provide cleaner workpiece surfaces, lower deformation rate, higher hardness uniformity, and stable heat treatment quality. It is highly favored by automotive parts, aerospace, mold manufacturing, and metallurgical processing enterprises.

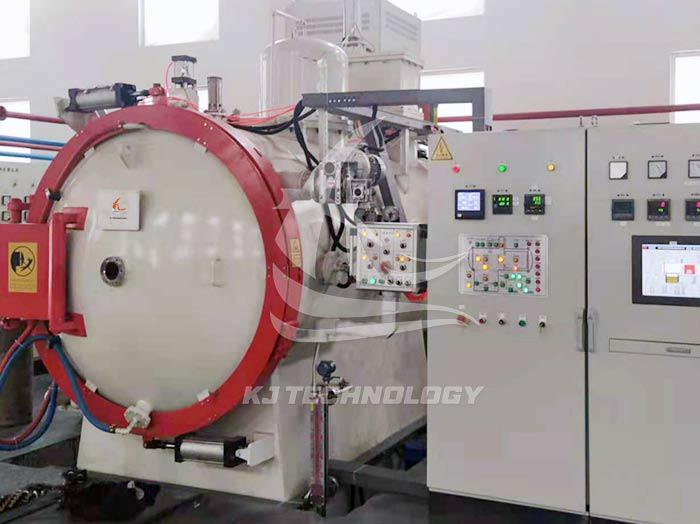

Commonly used oil quenching furnaces (click on the image to view product details)
2. Working Principle of Vacuum Oil Quenching Furnace
The working process of an industrial vacuum oil quenching furnace is divided into vacuum pumping, constant temperature heating, heat preservation, and oil quenching cooling. First, the internal air is completely extracted to form a high vacuum environment. Then the workpiece is uniformly heated to the set temperature through radiation heating elements. After reaching the heat preservation requirement, the material is quickly immersed in quenching oil for rapid cooling to achieve high hardness and stable metal microstructure.
The whole treatment process is carried out in an oxygen-free vacuum state, which ensures no oxidation traces on the metal surface, no blackening, and no decarburization layer.
3. Core Advantages of Industrial Vacuum Oil Quenching Furnace
3.1 Excellent Quenching Quality
Under high vacuum conditions, the metal workpiece maintains a bright metallic surface without oxidation. The quenched parts feature uniform hardness, stable internal structure, and extremely low deformation rate, which greatly improves the yield of finished products.
3.2 Wide Material Compatibility
This industrial vacuum quenching furnace is suitable for various metal materials, including high-speed steel, mold steel, alloy steel, stainless steel, titanium alloy, and cemented carbide. It can meet diversified heat treatment requirements of different industrial workpieces.
3.3 Energy Saving and Environmental Protection
The vacuum oil quenching furnace adopts high-quality thermal insulation materials and advanced heating control technology. It features low energy consumption, low heat loss, and no harmful gas emission during operation. The fully enclosed structure reduces oil volatilization and meets international environmental protection production standards.
3.4 Intelligent Automatic Control
Equipped with an intelligent PLC control system, the furnace supports multi-stage temperature rise, constant temperature, and cooling setting. Users can store multiple heat treatment process curves, realize one-key operation, and effectively reduce manual operation errors.
3.5 Durable and Stable Structure
The industrial vacuum oil quenching furnace adopts thickened furnace body and high-temperature resistant heating components. With excellent vacuum sealing performance, it can run continuously for a long time in industrial production environments with low failure rate and simple daily maintenance.
4. Main Industrial Applications
- Mold Manufacturing Industry: Hardening and tempering of plastic molds, die-casting molds, and precision molds.
- Automotive Parts: Heat treatment of gears, bearings, engine parts, and transmission components.
- Aerospace Industry: High-precision alloy parts, titanium alloy structural parts vacuum quenching.
- Tool Hardware Industry: High-speed steel tools, cutting tools, drill bits, and blade hardening treatment.
- Metallurgical Processing: Vacuum annealing and quenching of various metal alloy materials.
5. Key Configuration Parameters for Selection
When purchasing an industrial vacuum oil quenching furnace, buyers need to pay attention to core parameters such as maximum heating temperature, vacuum degree, effective furnace chamber size, quenching oil circulation system, and cooling mode. Reliable manufacturers support customized furnace size, vacuum level, and automatic feeding system according to customer workpiece specifications and production output.
6. Conclusion
The industrial vacuum oil quenching furnace is an efficient, environmentally friendly, and high-precision metal heat treatment device. With bright workpiece surface, small deformation, uniform hardness, and wide material adaptability, it has gradually replaced traditional salt bath furnaces and atmospheric quenching furnaces. It is the preferred heat treatment equipment for modern industrial manufacturing enterprises.

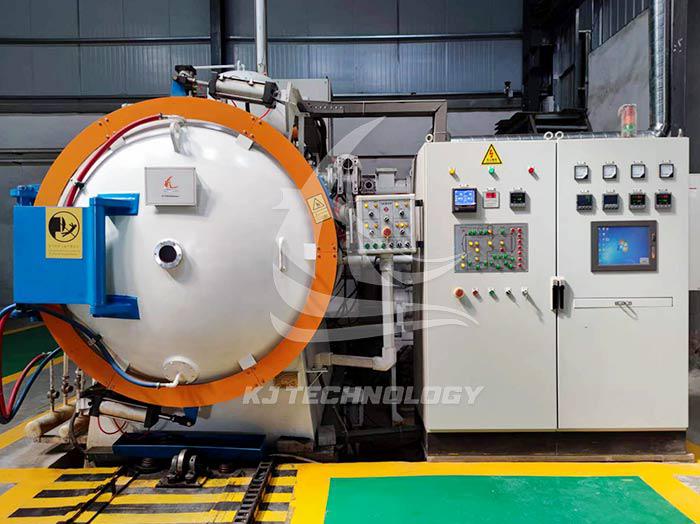

Industrial vacuum oil quenching furnace (click on the picture to view product details)
If you need customized industrial vacuum oil quenching furnaces or professional heat treatment solution consultation, please contact us for free technical parameters and factory quotations.
